A2UIAgent: Rich UI from Your AG2 Agents

Your AG2 agent can reason, call tools, and stream text. But what if it could also generate a full UI — cards, forms, buttons, images — from a single prompt?

A2UIAgent is a new reference agent in AG2 that produces rich, interactive user interfaces using the A2UI protocol. Instead of returning plain text, the agent generates structured JSON that client-side renderers transform into native UI components. The same agent serves web, mobile, and desktop clients — all through standard protocols.

In this post, we'll walk through what A2UIAgent does, how it works under the hood, and how to build a working demo that generates marketing preview cards served over A2A.

The Problem: Agents Speak Text, Users Expect UI#

Most agent frameworks output text. That's fine for chatbots, but real applications need structured content: product cards, booking forms, dashboards, social media previews. Today, developers bridge this gap with custom JSON schemas, bespoke rendering code, and fragile prompt engineering.

The A2UI protocol (Agent-to-Agent UI) solves this by defining a standard component catalog that agents can target. An LLM generates A2UI JSON messages, and any A2UI-compatible renderer — React, Flutter, Angular — displays them as native UI. No custom rendering code per agent.

What A2UIAgent Does#

A2UIAgent extends AG2's ConversableAgent with everything needed for A2UI:

1. Prompt engineering — The system prompt automatically includes A2UI protocol instructions, component catalog, and formatting rules
2. Response parsing — Extracts A2UI JSON from the LLM's output (separated by a delimiter from conversational text)
3. Schema validation + retry — Optionally validates output against the A2UI schema and retries on failure with error feedback
4. Action handling — Maps UI button clicks to tool calls or LLM prompts
5. Protocol integration — Works with both AG-UI (streaming) and A2A (agent-to-agent) out of the box

Quick Example#

from autogen import LLMConfig
from autogen.agents.experimental import A2UIAgent

llm_config = LLMConfig({"api_type": "google", "model": "gemini-3.1-flash-lite-preview"})

agent = A2UIAgent(
    name="ui_agent",
    llm_config=llm_config,
    validate_responses=True,
    validation_retries=2,
)

When you send this agent a message like "Show me a product card for a water bottle", it responds with:

Here's a product card for you.
---a2ui_JSON---
[
  {"version": "v0.9", "createSurface": {"surfaceId": "product", "catalogId": "..."}},
  {"version": "v0.9", "updateComponents": {
    "surfaceId": "product",
    "components": [
      {"id": "root", "component": "Card", "child": "content"},
      {"id": "content", "component": "Column", "children": ["img", "title", "desc", "btn"]},
      {"id": "img", "component": "Image", "url": "https://..."},
      {"id": "title", "component": "Text", "text": "H2Oh Water Bottle", "variant": "h2"},
      {"id": "desc", "component": "Text", "text": "Stay hydrated in style."},
      {"id": "btn", "component": "Button", "child": "btn_text",
       "action": {"event": {"name": "add_to_cart"}}},
      {"id": "btn_text", "component": "Text", "text": "Add to Cart"}
    ]
  }}
]

The text goes to the user. The JSON goes to the renderer. The user sees a card with an image, title, description, and a working button.

The Validation Loop#

LLMs don't always produce valid JSON on the first try. A2UIAgent handles this with a generate-validate-retry loop:

1. Generate — The LLM produces a response
2. Parse — Extract A2UI JSON from the response
3. Validate — Check against the A2UI v0.9 schema
4. If invalid — Feed validation errors back as a user message and retry
5. If retries exhausted — Return text only (graceful degradation, no broken UI)

This self-correction dramatically improves output quality. In practice, most LLMs get it right on the first or second attempt.

Actions: Buttons That Do Things#

A2UIAgent supports two types of button actions:

Tool actions route directly to a registered tool:

from autogen.agents.experimental.a2ui import A2UIAction

A2UIAction(
    name="schedule_9am",
    tool_name="schedule_posts",      # Calls this tool directly
    example_context={"time": "9:00 AM"},
)

LLM actions send a prompt back to the agent for a new response:

A2UIAction(
    name="rewrite",
    description="Regenerate with a different creative angle",
)

The agent auto-injects action descriptions into the system prompt, so the LLM knows how to create buttons for them.

Custom Components#

The basic catalog covers common components (Text, Image, Button, Card, Column, Row, Divider, TextField, ChoicePicker). For domain-specific needs, extend it with a custom catalog:

agent = A2UIAgent(
    name="social_previewer",
    llm_config=llm_config,
    custom_catalog="social_catalog.json",  # Adds LinkedInPost, XPost components
    custom_catalog_rules="For LinkedInPost, populate ALL fields: authorName, body, hashtags.",
)

Custom catalogs reference the basic catalog and add new component types. The agent's prompt includes both catalogs automatically.

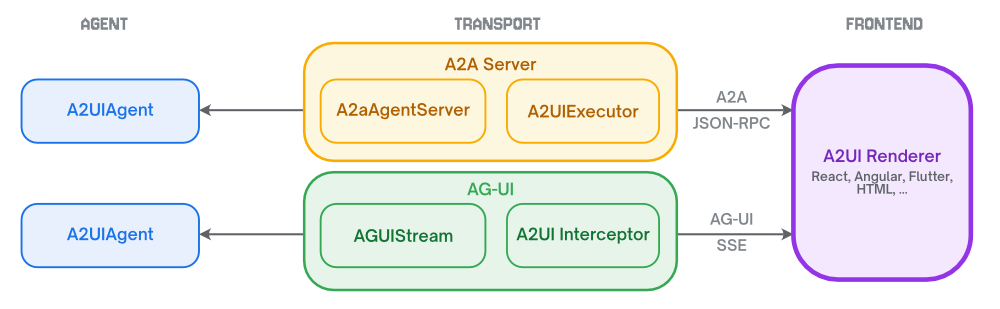

Transport Options#

Serving Over A2A#

A2UIAgent produces A2UI JSON — a transport-agnostic UI specification. Wrap it in A2aAgentServer to serve via the A2A protocol:

from autogen.a2a import A2aAgentServer, CardSettings

server = A2aAgentServer(
    agent=agent,
    url="http://localhost:9000",
    agent_card=CardSettings(name="UI Agent", description="Generates rich UI."),
)

app = server.build()

The server auto-detects A2UIAgent and uses A2UIAgentExecutor to split responses into TextPart + DataPart (MIME: application/json+a2ui). It declares A2UI v0.9 extension support in the agent card and handles extension negotiation — clients that support A2UI get rich DataParts, others get plain text. Actions flow back from the frontend as DataParts.

A2UIAgent also supports the AG-UI protocol for streaming A2UI over SSE to web frontends like CopilotKit.

Building a Marketing Preview Demo#

Here are the key components for a demo that generates email, LinkedIn, and X/Twitter preview cards for a product campaign, served over A2A to a Flutter frontend. The complete runnable example — including the full backend with tool functions and the complete Flutter app — is available in the Build with AG2 repository.

The email mockup will be created dynamically by the A2UIAgent using the basic component catalog. The LinkedIn and X mockups will be created using a custom catalog.

Backend#

Here we create the A2UIAgent, include our custom socials catalog, and add the actions that can be triggered.

from autogen import LLMConfig
from autogen.a2a import A2aAgentServer, CardSettings
from autogen.agents.experimental import A2UIAgent
from autogen.agents.experimental.a2ui import A2UIAction

llm_config = LLMConfig({"api_type": "google", "model": "gemini-3.1-flash-lite-preview"})

agent = A2UIAgent(
    name="social_previewer",
    system_message="You are a marketing content designer. Generate three preview cards: Email, LinkedIn, and X/Twitter.",
    llm_config=llm_config,
    custom_catalog="social_catalog.json",
    validate_responses=True,
    validation_retries=2,
    actions=[
        A2UIAction(name="approve_previews", description="Show scheduling options"),
        A2UIAction(name="rewrite_previews", description="Regenerate with a different angle"),
        A2UIAction(name="schedule_9am", tool_name="schedule_posts",
                   example_context={"time": "9:00 AM"}),
    ],
)

server = A2aAgentServer(
    agent=agent,
    url="http://localhost:9000",
    agent_card=CardSettings(name="Social Preview Designer"),
)

app = server.build()
# uvicorn backend:app --port 9000

Flutter Frontend#

On the client side, Flutter's genui packages provide a native A2UI renderer. Add genui and genui_a2a to your pubspec.yaml:

dependencies:
  genui:
    git:
      url: https://github.com/flutter/genui.git
      path: packages/genui
  genui_a2a:
    git:
      url: https://github.com/flutter/genui.git
      path: packages/genui_a2a

Then connect to the A2A backend:

import 'package:genui/genui.dart';
import 'package:genui_a2a/genui_a2a.dart';

// Surface controller manages A2UI surfaces and renders components
final controller = SurfaceController(
  catalogs: [BasicCatalogItems.asCatalog()],
);

// Connect to the A2A server
final connector = A2uiAgentConnector(
  url: Uri.parse('http://localhost:9000'),
);

// Bridge sends and pipe responses
final transport = A2uiTransportAdapter(
  onSend: (message) => connector.connectAndSend(
    message,
    clientCapabilities: controller.clientCapabilities,
  ),
);

final conversation = Conversation(
  controller: controller,
  transport: transport,
);

connector.stream.listen(transport.addMessage);
connector.textStream.listen(transport.addChunk);

The A2uiAgentConnector handles A2A communication and A2UI extension negotiation automatically. The SurfaceController receives A2UI operations and renders them as native Flutter widgets. Actions (button clicks) flow back through the transport to the A2A server, where they're routed to tools or the LLM.

The same A2A backend can serve any A2UI-compatible client — Flutter, web, or other renderers.

The complete demo code — including the Flutter frontend — is available in the Build with AG2 repository.

Installing AG2 for A2UI#

Install ag2 with A2UI and A2A extras:

pip install "ag2[a2ui,a2a]"

Read the docs:

• A2UIAgent Reference — Full parameter reference, validation loop, actions, and integration guide
• A2UI Protocol — Official A2UI specification
• AG-UI Integration — Streaming A2UI over AG-UI
• A2A Server — Serving agents via A2A

We'd love your feedback. Try A2UIAgent, build something with it, and let us know what you think on GitHub or Discord.
