Orchestration Patterns

Patterns are the foundation of group chat orchestration - they define how agents take turns speaking and collaborating. Each pattern offers a different approach to determining which agent speaks next, giving you control over the conversation flow.

Pattern Types#

AG2 offers five orchestration patterns to structure agent interactions:

Pattern	Description	Best For
DefaultPattern	Relies solely on explicitly defined agent handoffs	Fine-grained control over workflow transitions
AutoPattern	Uses LLM to select next speaker based on message content	Dynamic conversations where next speaker depends on context
RoundRobinPattern	Agents speak in a predetermined sequential order	Workflows where each agent should contribute in turn
RandomPattern	Randomly selects the next agent (excluding current speaker)	Generating diverse perspectives or brainstorming
ManualPattern	Prompts the user to select the next speaker	Educational scenarios or debugging complex workflows

Let's explore each pattern using our triage example, where three specialized agents collaborate to provide technical support:

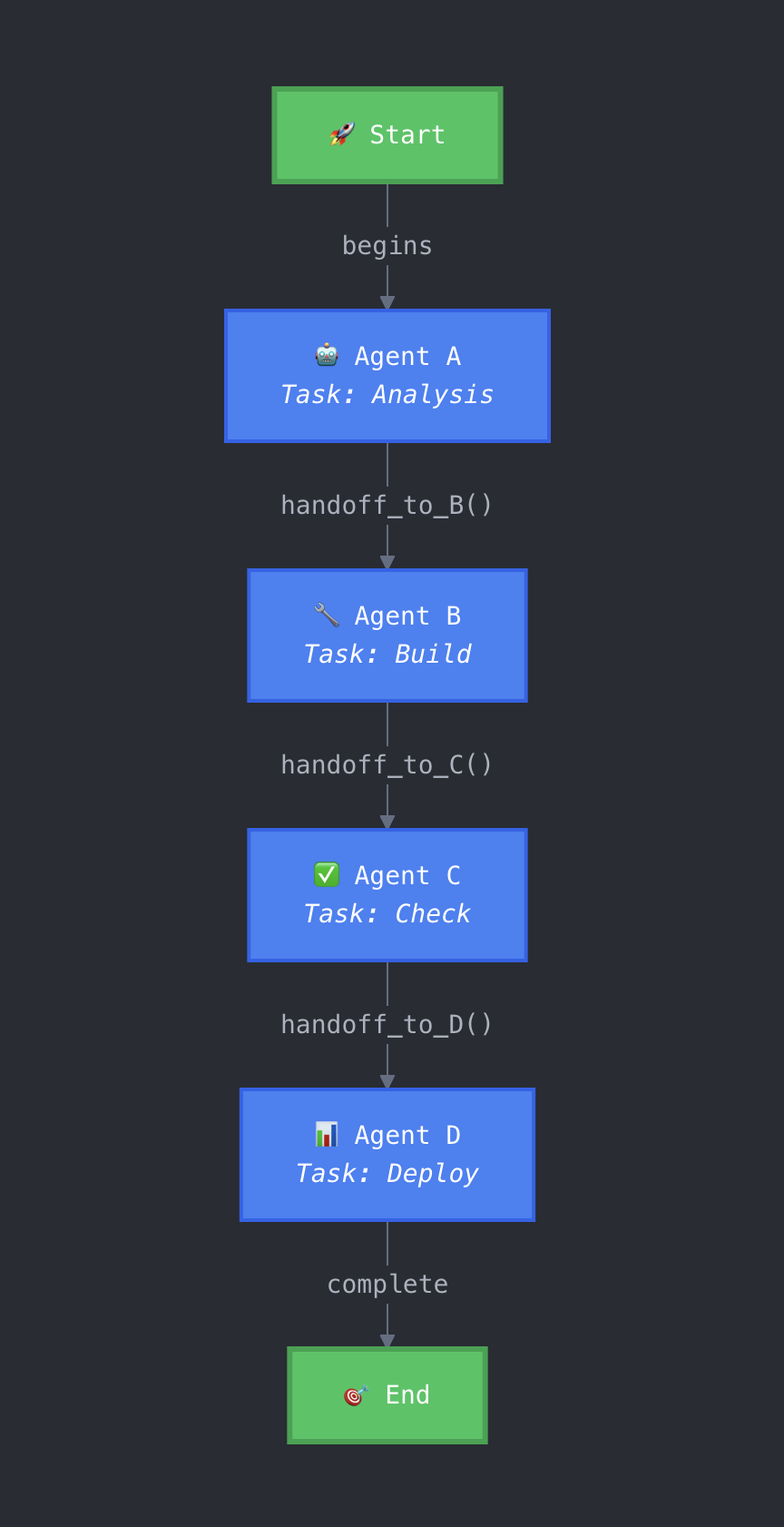

DefaultPattern: Explicit Handoff Control#

The DefaultPattern gives you complete control over the conversation flow through explicitly defined handoffs. With this pattern, you must define precisely where control should transfer next, or the conversation will terminate after the initial agent response.

Key Characteristics#

Requires explicit definition of all agent transitions
No automatic selection of the next speaker
Conversation terminates if no valid handoff is defined
Provides maximum control over the conversation flow

Configuration Example#

With DefaultPattern, we need to explicitly define the handoffs between agents:

# Configure the pattern
pattern = DefaultPattern(
    initial_agent=triage_agent,
    agents=[triage_agent, tech_agent, general_agent],
    user_agent=user,
    group_manager_args={"llm_config": llm_config}
)

# Define explicit handoffs for each agent
triage_agent.handoffs.add_llm_conditions([
        OnCondition(
            target=AgentTarget(tech_agent),
            condition=StringLLMCondition(prompt="When the user query is related to technical issues."),
        ),
        OnCondition(
            target=AgentTarget(agent=general_agent),
            condition=StringLLMCondition(prompt="When the user query is related to general questions."),
        )
    ]
)
tech_agent.handoffs.set_after_work(RevertToUserTarget())
general_agent.handoffs.set_after_work(RevertToUserTarget())

In this example, the triage_agent explicitly defines the handoffs to either the tech_agent or general_agent based on the user query. And after the tech_agent and general_agent respond, they revert control back to the user. This pattern is ideal for scenarios where you need precise control over the conversation flow and want to ensure that each agent only speaks when necessary.

Complete Code Example#

Complete Code Example

from autogen import ConversableAgent, LLMConfig
from autogen.agentchat import initiate_group_chat
from autogen.agentchat.group.patterns import DefaultPattern
from autogen.agentchat.group import AgentTarget, RevertToUserTarget, OnCondition, StringLLMCondition

llm_config = LLMConfig(api_type="openai", model="gpt-4o-mini")

with llm_config:
    triage_agent = ConversableAgent(
        name="triage_agent",
        system_message="""You are a triage agent. For each user query,
        identify whether it is a technical issue or a general question. Route
        technical issues to the tech agent and general questions to the general agent.
        Do not provide suggestions or answers, only route the query."""
    )

    tech_agent = ConversableAgent(
        name="tech_agent",
        system_message="""You solve technical problems like software bugs
        and hardware issues."""
    )

    general_agent = ConversableAgent(
        name="general_agent",
        system_message="You handle general, non-technical support questions."
    )

user = ConversableAgent(name="user", human_input_mode="ALWAYS")

pattern = DefaultPattern(
    initial_agent=triage_agent,
    agents=[triage_agent, tech_agent, general_agent],
    user_agent=user,
    group_manager_args={"llm_config": llm_config}
)

# Define explicit handoffs for each agent
triage_agent.handoffs.add_llm_conditions([
        OnCondition(
            target=AgentTarget(tech_agent),
            condition=StringLLMCondition(prompt="When the user query is related to technical issues."),
        ),
        OnCondition(
            target=AgentTarget(agent=general_agent),
            condition=StringLLMCondition(prompt="When the user query is related to general questions."),
        )
    ]
)

tech_agent.handoffs.set_after_work(RevertToUserTarget())
general_agent.handoffs.set_after_work(RevertToUserTarget())

result, context, last_agent = initiate_group_chat(
    pattern=pattern,
    messages="My laptop keeps shutting down randomly. Can you help?",
    max_rounds=10
)

When to Use DefaultPattern#

DefaultPattern is ideal for:

Workflows with well-defined, predictable transitions
Compliance scenarios requiring specific approval chains
Sequential processes where each step must follow a predetermined path
Debugging complex multi-agent interactions

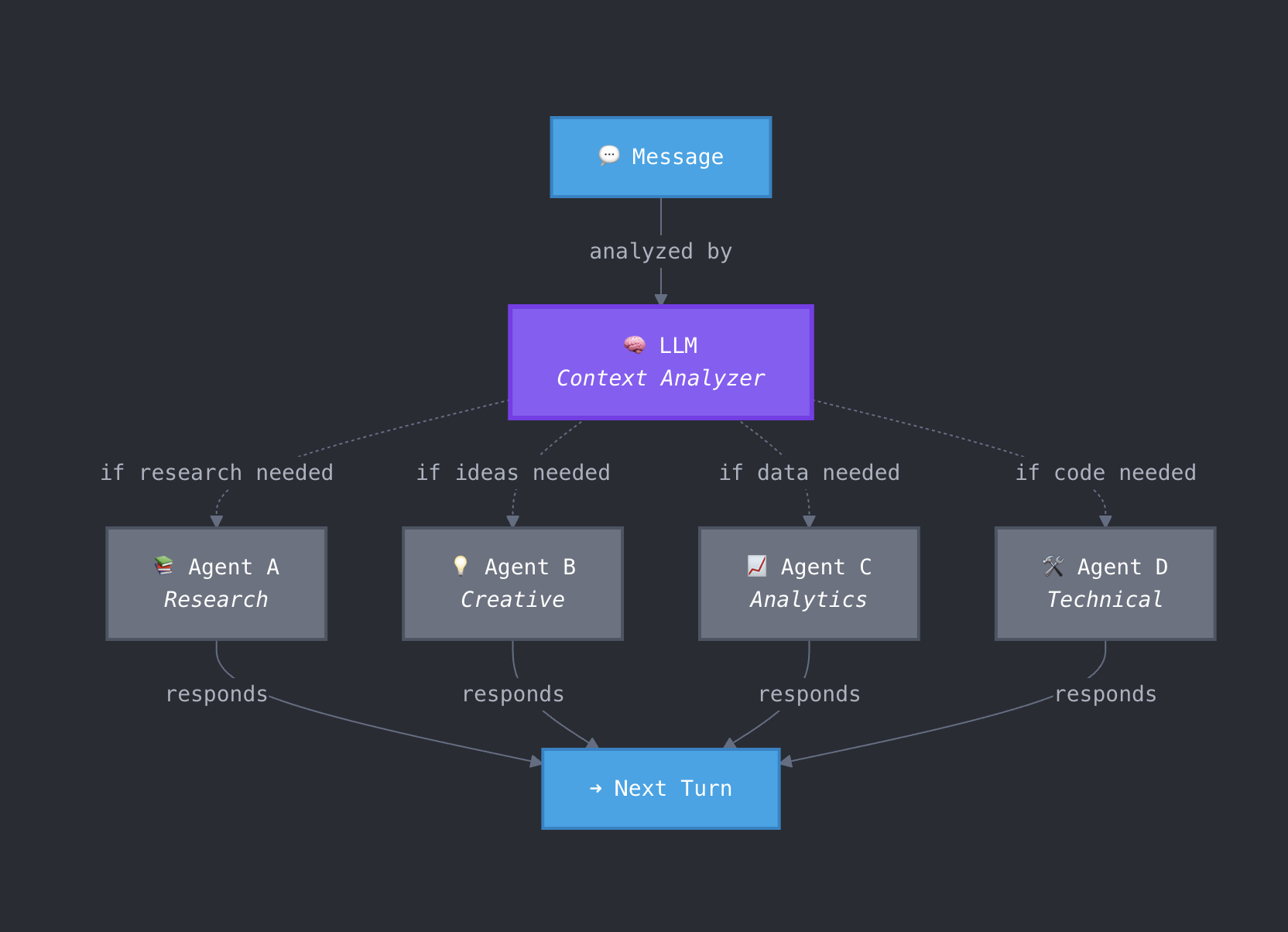

AutoPattern: LLM-Powered Speaker Selection#

The AutoPattern uses an LLM to intelligently select the next speaker based on the conversation context, creating a more dynamic and adaptive conversation flow.

Key Characteristics#

Automatically selects the next speaker using an LLM
Analyzes conversation context to determine the most appropriate agent
Agents can still use explicit handoffs when needed
Creates natural, adaptive conversations

Configuration Example#

Setting up the AutoPattern is simpler since it doesn't require explicit handoffs:

pattern = AutoPattern(
    initial_agent=triage_agent,
    agents=[triage_agent, tech_agent, general_agent],
    user_agent=user,
    group_manager_args={"llm_config": llm_config}
)

In this pattern, the next speaker is determined by the LLM based on the conversation context. This allows for a more fluid and natural conversation flow, as agents can respond based on the current state of the discussion.

Complete Code Example#

Complete Code Example

from autogen import ConversableAgent, LLMConfig
from autogen.agentchat import initiate_group_chat
from autogen.agentchat.group.patterns import AutoPattern

llm_config = LLMConfig(api_type="openai", model="gpt-4o-mini")

with llm_config:
    triage_agent = ConversableAgent(
        name="triage_agent",
        system_message="""You are a triage agent. For each user query,
        identify whether it is a technical issue or a general question. Route
        technical issues to the tech agent and general questions to the general agent.
        Do not provide suggestions or answers, only route the query."""
    )

    tech_agent = ConversableAgent(
        name="tech_agent",
        system_message="""You solve technical problems like software bugs
        and hardware issues."""
    )

    general_agent = ConversableAgent(
        name="general_agent",
        system_message="You handle general, non-technical support questions."
    )

user = ConversableAgent(name="user", human_input_mode="ALWAYS")

pattern = AutoPattern(
    initial_agent=triage_agent,
    agents=[triage_agent, tech_agent, general_agent],
    user_agent=user,
    group_manager_args={"llm_config": llm_config}
)

result, context, last_agent = initiate_group_chat(
    pattern=pattern,
    messages="My laptop keeps shutting down randomly. Can you help?",
    max_rounds=10
)

When to Use AutoPattern#

AutoPattern is ideal for:

Customer service bots that need to route inquiries appropriately
Complex workflows where the next step depends on the content of messages
Creating natural conversations with dynamic speaker transitions
Scenarios where predefined handoff rules would be too complex

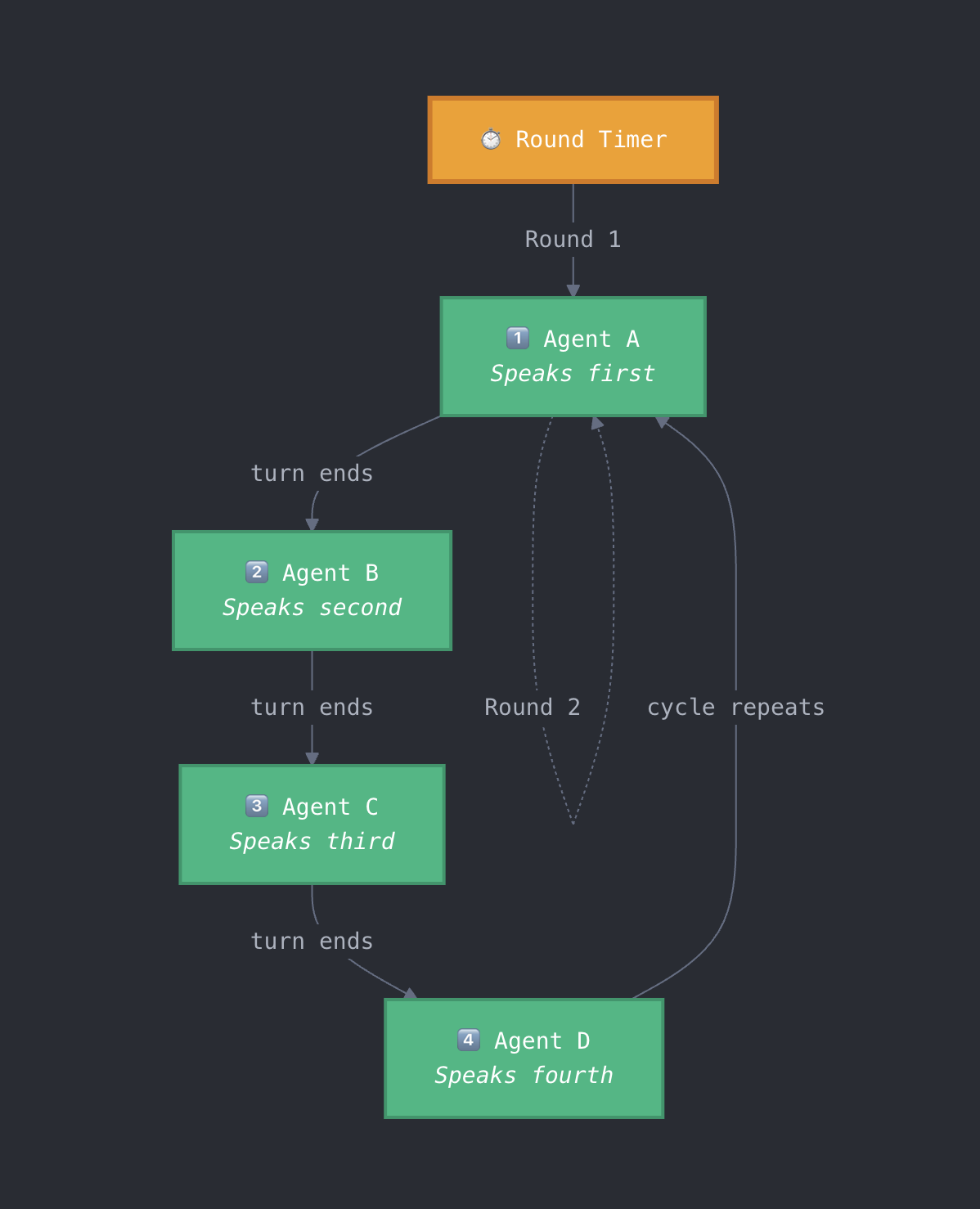

RoundRobinPattern: Sequential Speaker Rotation#

The RoundRobinPattern creates a predictable rotation where agents speak in the exact order they're listed in the pattern configuration.

Key Characteristics#

Agents speak in a fixed, sequential order
Order is determined by the list of agents provided to the pattern
Predictable and deterministic behavior

Configuration Example#

Setting up the RoundRobinPattern focuses on the order of agents:

pattern = RoundRobinPattern(
    initial_agent=triage_agent,
    agents=[triage_agent, tech_agent, general_agent],
    user_agent=user
)

Complete Code Example#

In the example below, the agent order is set to triage_agent, general_agent, and tech_agent. This means the triage_agent will always speak first, followed by the general_agent, and then the tech_agent.

Even though the triage_agent's system message explicitly instructs it to route technical queries to the tech_agent, the control flow still follows the defined order. As a result, the tech_agent hands off to the general_agent, who then decides when to pass the query back to the tech_agent for technical responses.

Note

If the order is explicitly coded like in the DefaultPattern example, that will take precedence over the RoundRobinPattern. For example, you can specify the below handoffs in code and it will override the order of the RoundRobinPattern:

triage_agent.handoffs.add_llm_conditions([
        OnCondition(
            target=AgentTarget(tech_agent),
            condition=StringLLMCondition(prompt="When the user query is related to technical issues."),
        ),
        OnCondition(
            target=AgentTarget(agent=general_agent),
            condition=StringLLMCondition(prompt="When the user query is related to general questions."),
        )
    ]
)

tech_agent.handoffs.set_after_work(RevertToUserTarget())
general_agent.handoffs.set_after_work(RevertToUserTarget())

Complete Code Example

from autogen import ConversableAgent, LLMConfig
from autogen.agentchat import initiate_group_chat
from autogen.agentchat.group.patterns import RoundRobinPattern
from autogen.agentchat.group import AgentTarget, RevertToUserTarget, OnCondition, StringLLMCondition

llm_config = LLMConfig(api_type="openai", model="gpt-4o-mini")

with llm_config:
    triage_agent = ConversableAgent(
        name="triage_agent",
        system_message="""You are a triage agent. For each user query,
        identify whether it is a technical issue or a general question. Route
        technical issues to the tech agent and general questions to the general agent.
        Do not provide suggestions or answers, only route the query."""
    )

    tech_agent = ConversableAgent(
        name="tech_agent",
        system_message="""You solve technical problems like software bugs
        and hardware issues."""
    )

    general_agent = ConversableAgent(
        name="general_agent",
        system_message="You handle general, non-technical support questions."
    )

user = ConversableAgent(name="user", human_input_mode="ALWAYS")

pattern = RoundRobinPattern(
    initial_agent=triage_agent,
    agents=[triage_agent, general_agent, tech_agent],
    user_agent=user,
    group_manager_args={"llm_config": llm_config}
)

result, context, last_agent = initiate_group_chat(
    pattern=pattern,
    messages="My laptop keeps shutting down randomly. Can you help?",
    max_rounds=10
)

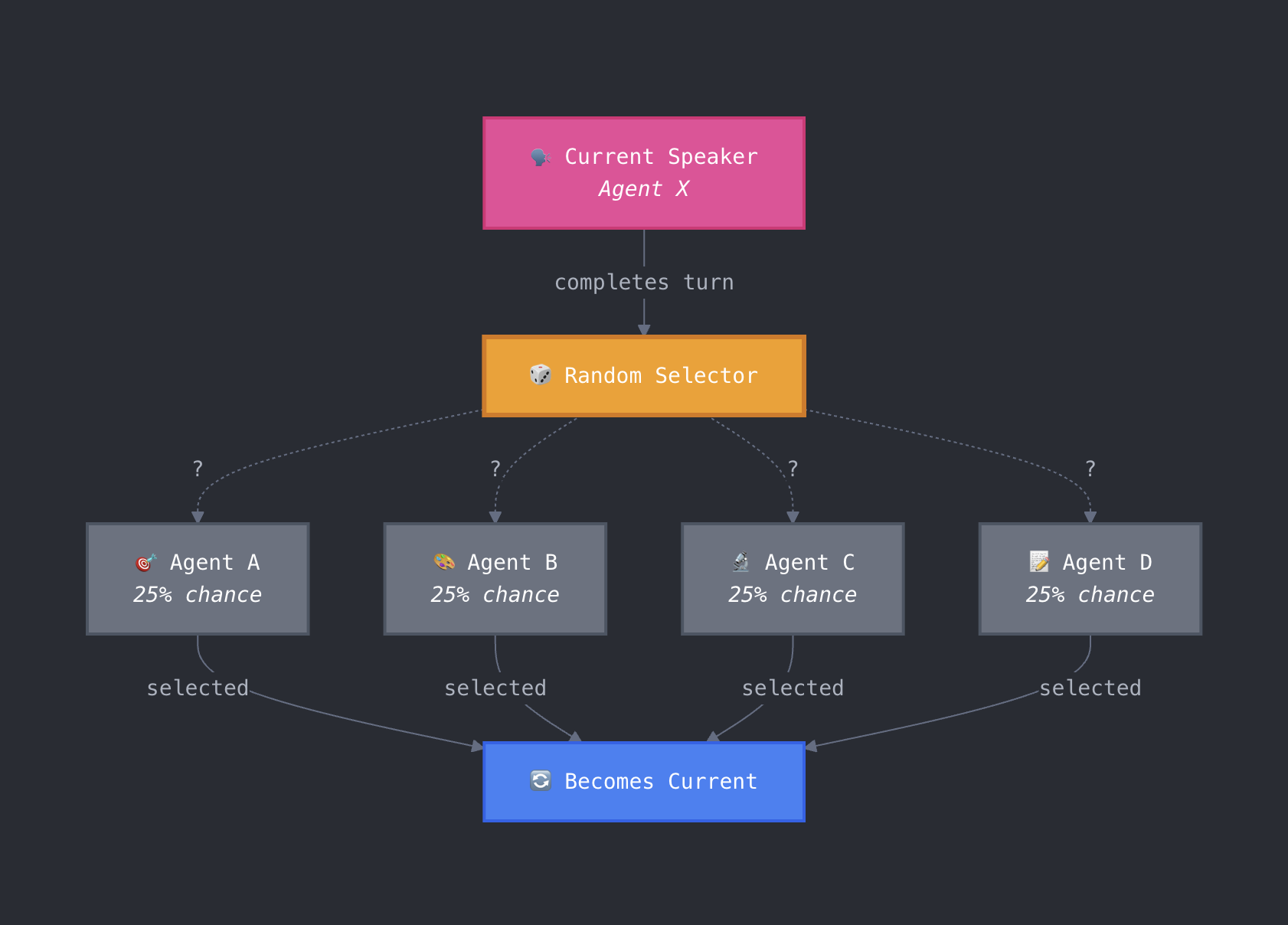

RandomPattern: Non-deterministic Speaker Selection#

The RandomPattern adds an element of unpredictability by randomly selecting the next speaker, which can be useful for generating diverse perspectives.

Key Characteristics#

Randomly selects the next speaker (excluding the current speaker)
Creates unpredictable, non-deterministic conversations
Can generate diverse perspectives on a topic

Configuration Example#

Setting up the RandomPattern:

pattern = RandomPattern(
    initial_agent=triage_agent,
    agents=[triage_agent, tech_agent, general_agent],
    user_agent=user
)

Complete Code Example#

Complete Code Example

from autogen import ConversableAgent, LLMConfig
from autogen.agentchat import initiate_group_chat
from autogen.agentchat.group.patterns import RandomPattern
from autogen.agentchat.group import AgentTarget, RevertToUserTarget, OnCondition, StringLLMCondition

llm_config = LLMConfig(api_type="openai", model="gpt-4o-mini")

with llm_config:
    triage_agent = ConversableAgent(
        name="triage_agent",
        system_message="""You are a triage agent. For each user query,
        identify whether it is a technical issue or a general question. Route
        technical issues to the tech agent and general questions to the general agent.
        Do not provide suggestions or answers, only route the query."""
    )

    tech_agent = ConversableAgent(
        name="tech_agent",
        system_message="""You solve technical problems like software bugs
        and hardware issues."""
    )

    general_agent = ConversableAgent(
        name="general_agent",
        system_message="You handle general, non-technical support questions."
    )

user = ConversableAgent(name="user", human_input_mode="ALWAYS")

pattern = RandomPattern(
    initial_agent=triage_agent,
    agents=[triage_agent, tech_agent, general_agent],
    user_agent=user,
    group_manager_args={"llm_config": llm_config}
)

result, context, last_agent = initiate_group_chat(
    pattern=pattern,
    messages="My laptop keeps shutting down randomly. Can you help?",
    max_rounds=10
)

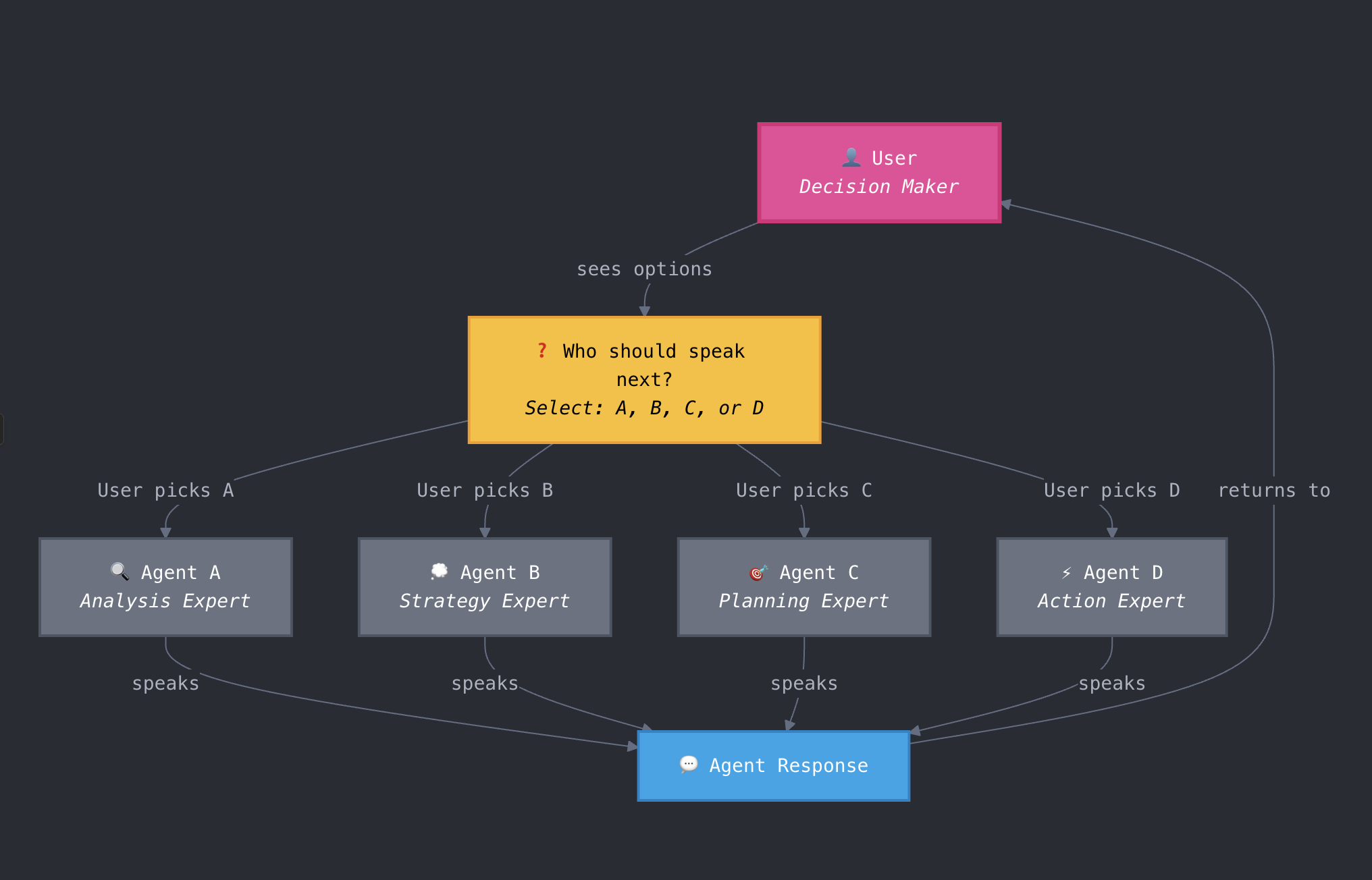

ManualPattern: Human-Directed Speaker Selection#

The ManualPattern puts you in control by always reverting to the user agent after each agent speaks, allowing you to manually direct the conversation flow.

Key Characteristics#

Always reverts to the user agent after an agent speaks
User selects the next agent to speak
Provides maximum human oversight
Useful for debugging or educational purposes

Configuration Example#

Setting up the ManualPattern:

pattern = ManualPattern(
    initial_agent=triage_agent,
    agents=[triage_agent, tech_agent, general_agent],
    user_agent=user
)

Complete Code Example#

Complete Code Example

from autogen import ConversableAgent, LLMConfig
from autogen.agentchat import initiate_group_chat
from autogen.agentchat.group.patterns import ManualPattern
from autogen.agentchat.group import AgentTarget, RevertToUserTarget, OnCondition, StringLLMCondition

llm_config = LLMConfig(api_type="openai", model="gpt-4o-mini")

with llm_config:
    triage_agent = ConversableAgent(
        name="triage_agent",
        system_message="""You are a triage agent. For each user query,
        identify whether it is a technical issue or a general question. Route
        technical issues to the tech agent and general questions to the general agent.
        Do not provide suggestions or answers, only route the query."""
    )

    tech_agent = ConversableAgent(
        name="tech_agent",
        system_message="""You solve technical problems like software bugs
        and hardware issues."""
    )

    general_agent = ConversableAgent(
        name="general_agent",
        system_message="You handle general, non-technical support questions."
    )

user = ConversableAgent(name="user", human_input_mode="ALWAYS")

pattern = ManualPattern(
    initial_agent=triage_agent,
    agents=[triage_agent, tech_agent, general_agent],
    user_agent=user,
    group_manager_args={"llm_config": llm_config}
)

result, context, last_agent = initiate_group_chat(
    pattern=pattern,
    messages="My laptop keeps shutting down randomly. Can you help?",
    max_rounds=10
)

When to Use ManualPattern#

ManualPattern is ideal for:

Educational demonstrations of multi-agent systems
Debugging complex agent interactions
Training scenarios where human guidance is beneficial
Applications requiring maximum human oversight
